Flat Bottle Sticker Labelling Machine

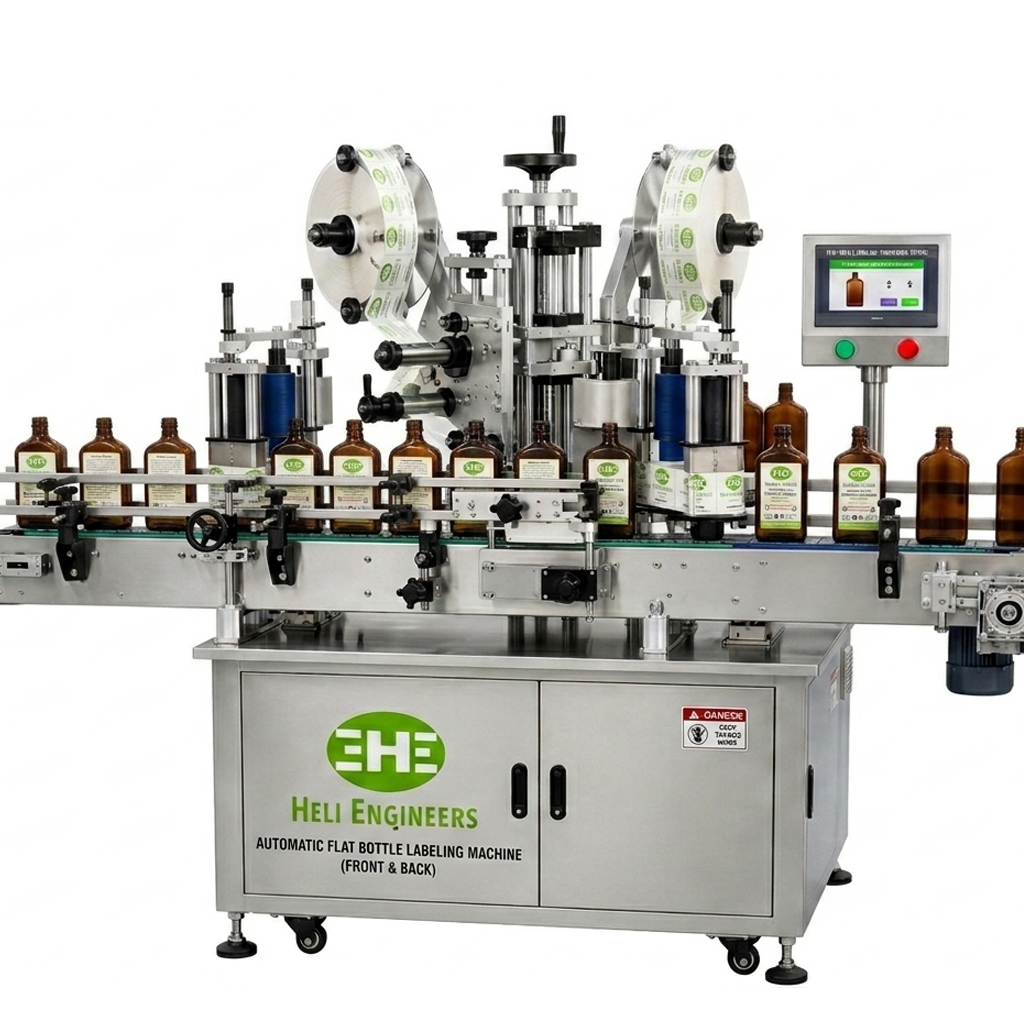

Flat Bottle Sticker Labelling Machine – HE-FBSL

Heli Engineers is a leading manufacturer and supplier of advanced Flat Bottle Sticker Labelling Machines designed for accurate, high-speed, and efficient labelling on flat bottles and containers.

These machines are widely used as Automatic Flat Bottle Labeling Machines, Square Bottle Labeling Machines, and Rectangular Bottle Labeling Machines in pharmaceutical, cosmetic, food, beverage, chemical, pesticide, lubricant oil, and packaging industries.

The Automatic Flat Bottle Sticker Labelling Machine is specially engineered for applying labels on flat surface bottles, square bottles, rectangular bottles, cartons, pouches, and containers with excellent labeling accuracy.

Manufactured using premium-quality stainless steel construction, the machine ensures hygienic operation, corrosion resistance, and long-lasting industrial performance.

Salient Features of Flat Bottle Sticker Labelling Machine

• Suitable for flat bottles, square bottles, and rectangular containers
• High-speed and accurate labelling system
• Bubble-free and wrinkle-free label application
• Machine construction in stainless steel
• PLC controlled operation with touch screen HMI
• Servo / stepper motor based label dispensing system
• Automatic bottle synchronization system
• No Bottle – No Label system
• Adjustable conveyor speed control
• Easy and quick changeover for different bottle sizes
• High labelling accuracy with minimum label wastage
• Built-in A.C. Variable Frequency Drive system
• Smooth and continuous bottle movement
• User-friendly operation and low maintenance
• Optional online batch coding and printing system
• Suitable for pharmaceutical, cosmetic, food, chemical, and beverage industries

Technical Specifications

Model	HE-FBSL
Bottle Type	Flat / Square / Rectangular Bottle
Bottle Height	50 mm to 300 mm
Bottle Width	20 mm to 150 mm
Label Height	10 mm to 180 mm
Label Length	20 mm to 300 mm
Production Speed	Up to 100 Bottles Per Minute
Label Accuracy	± 2 mm
Electrical Supply	230 / 440 Volts, 50 Hz
Power Consumption	1.5 H.P. Approx
Machine Construction	Stainless Steel
Drive System	Servo / Stepper Motor Based
Control System	PLC with Touch Screen HMI
Conveyor Height	750 mm (± 50mm)
Direction of Movement	Left to Right
Net Weight	Approx. 400 Kg
Optional Features	Batch Coding, Online Printing, Turn Table

Applications

Suitable for pharmaceutical bottles, cosmetic bottles, chemical bottles, lubricant oil bottles, food containers, beverage bottles, pesticide bottles, cartons, pouches, PET containers and industrial packaging labeling applications.
